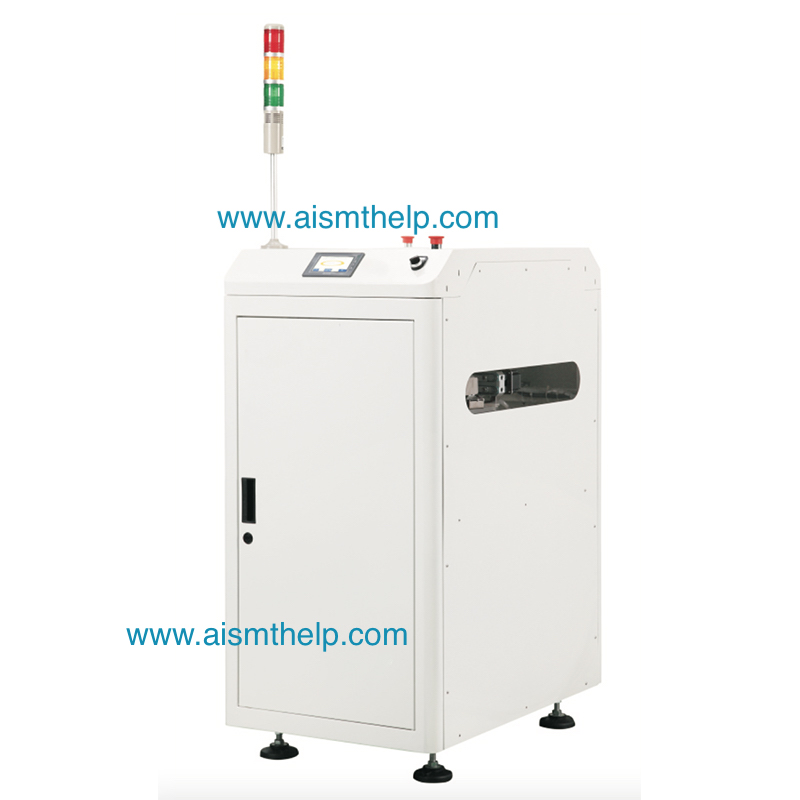

Automatic inverting machine

Model: R-460IM

For Exact Price and Quantity ,and Shipping Address ,please feel free to contact us :

分类： , 标签： , , , , , , , , , , , , , , , , , ,

描述

This equipment is used for processing double-sided circuit boards on the production line.

Features

●Strong and stable mechanical design

●Rotating power with 180degree rotating cylinder,runs more smoothly than traditional motors

●PCL control system

●LED TFT touch screen control panel

●Pass through function

●Optical sensors to control the starting and ending

●Standard SMEMA

Technique Parameter
Cycle periodAbout 20 seconds
Power supply and load100-230v AC (or customized), single phase, max. 300 VA
Air pressure and flow4-6 bar, max. 10 L / min
Transfer height920±20mm (or customized)
Transmission directionLeft → right or right → left (optional)
Board thicknessThinnest 0.4 mm
Specification Parameter
Product modelR-460IM
Circuit board size (LxW) ~ (LxW)mm(50x50)~ (500x460)
Overall dimension (LxWxH)mm600x900x1200
WeightApprox.140kg
Product Pictures
