Description

This equipment is used for automatic loading of bare board in SMT production line.

Features

*Placing board panel has changed to the up and down design which shorted the period of sucking board and make sure the stability

*PLC control system

*LED TFT touch screen control panel

*Flexible sucker design , high pressure sorption

*Independent vacuum sounder, high efficiency and reliable for board loading

*The main pneumatic components are imported products

*Standard SMEMA

Technique Parameter
Circuit board capacity	400 pieces (0.6mm thick circuit board)
Cycle period	About 8 seconds
Power supply and load	100-230v AC (Can be customized) single phase, max. 300VA
Air pressure and flow	4-6 bar, max. 10 L / min
Transmission height	920±20mm (or customized)
Transmission direction	Left → right or right →left (optional)
Circuit board thickness	Thinnest 0.4 mm

Specification Parameter
Product model	R-390VL
Circuit board size (LxW) ~ (LxW)	(50x50) ~ (500x390)
Overall dimension (LxWxH)mm	600x950x1200
Weight	Approx.140kg

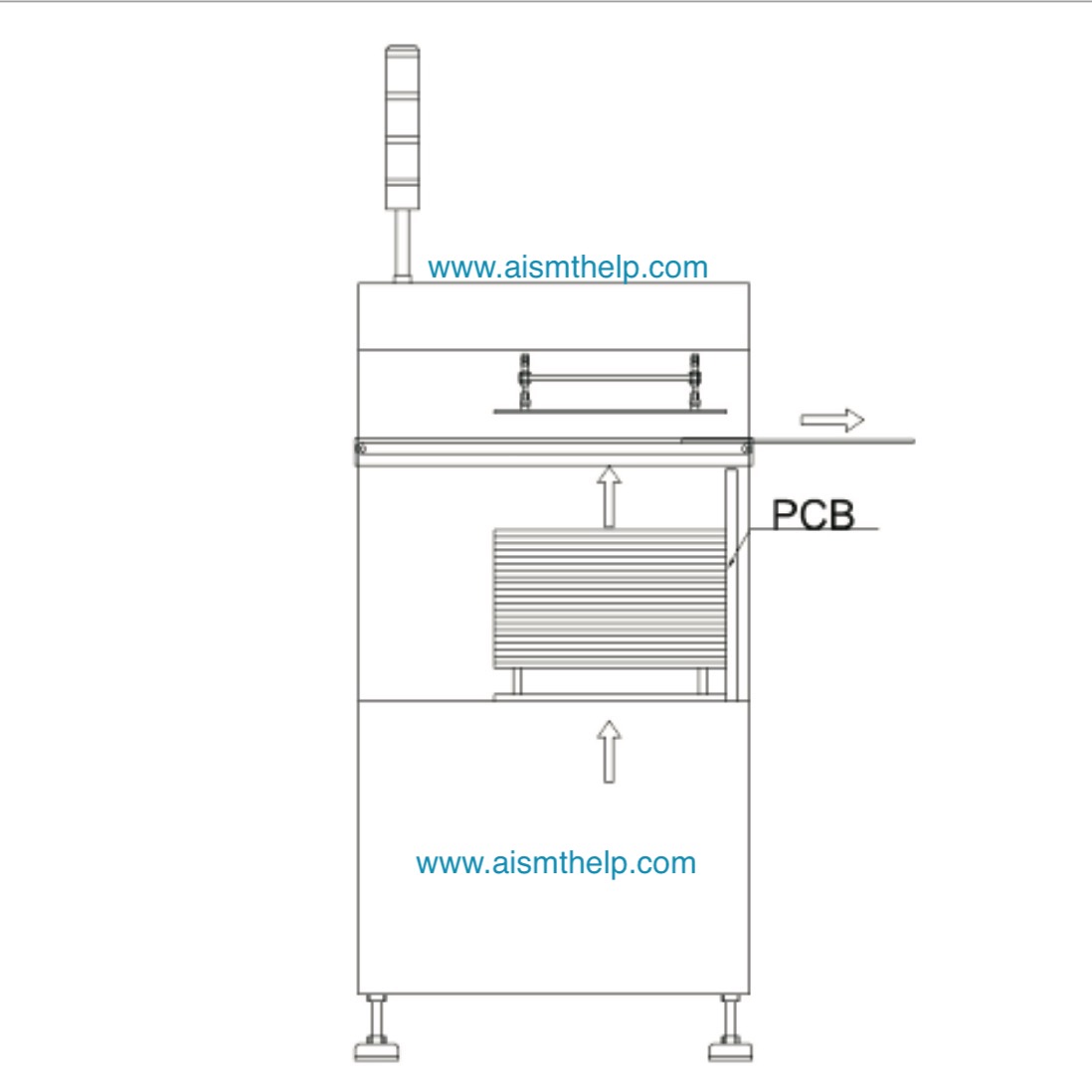

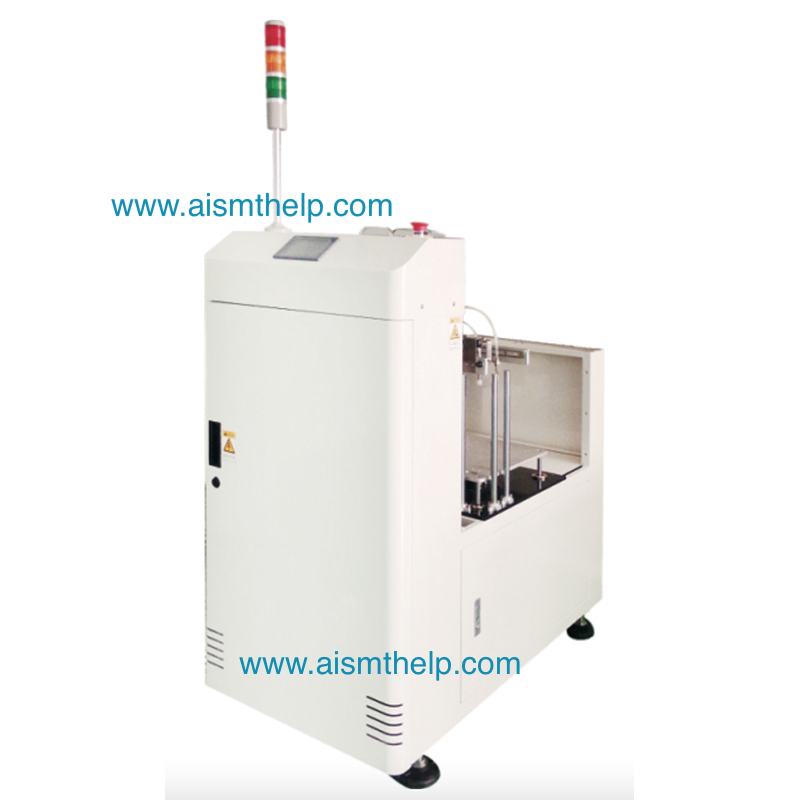

Product Pictures
