Description

This equipment is used to adjust the running direction of circuit board on SMT production line.

Features

*PLC control system

*LED TFT touch screen control panel

*There are two kinds of working modes, Turning and Straight through

*Transmission mode using anti-static 7mm flat belt

*The rotation adopts stepping motor to drive the reducer to rotate, with fast and stable operation and accurate positioning

*Standard SMEMA

Technique Parameter
Corner time	About 12 seconds
Through time	About 8 seconds
Power supply and load	100-230V AC (Or Customize), single phase, max. 300VA
Transmission height	920±20mm (Or Customize)
Transmission direction	Clockwise or counterclockwise rotation (optional)
Circuit board thickness	Thinnest 0.4 mm

Specifications
Machine Model	R-250CM	R-330CM	R-390CM
PCB size (LxW)	(50x50)~ (350x250)	(50x50)~ (455x330)	(50x50) ~ (530*390)
Machine Dimension (LxWxH)	700x 700x1200	800x 800x 1200	900x 900x 1200
Weight	Approx.150kg	Approx.200kg	Approx.250kg

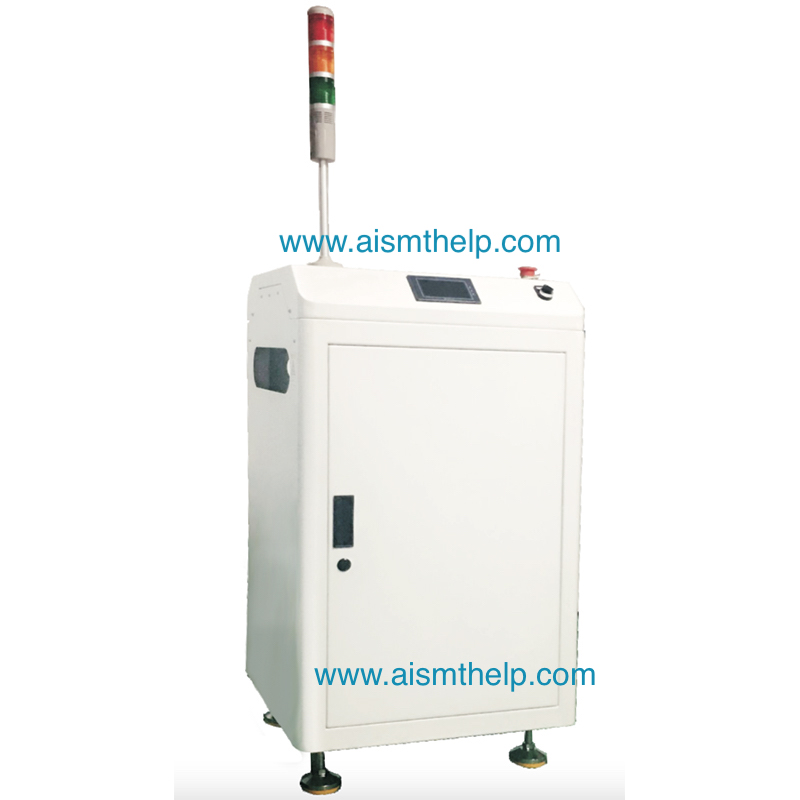

Product Pictures
